Valley Center Pivots


8000 Series Center Pivot

Valley structures stand up to the toughest loads produced by rough terrain, deep furrows and long-span machines. No wonder Valley pivots command the highest resale value in the industry

Maximum machine length      2,800'

Crop clearance profile options    Low, standard, high and ultra-high

Reliable    Made in the USA Valley gearbox
Durable    Valley structure — engineered for long life
Precise    Sprinkler package — low energy and high uniformity
Advanced    Valley control technology — mechanical and computerized control panels
Responsive    Valley dealers — fast, dependable service.

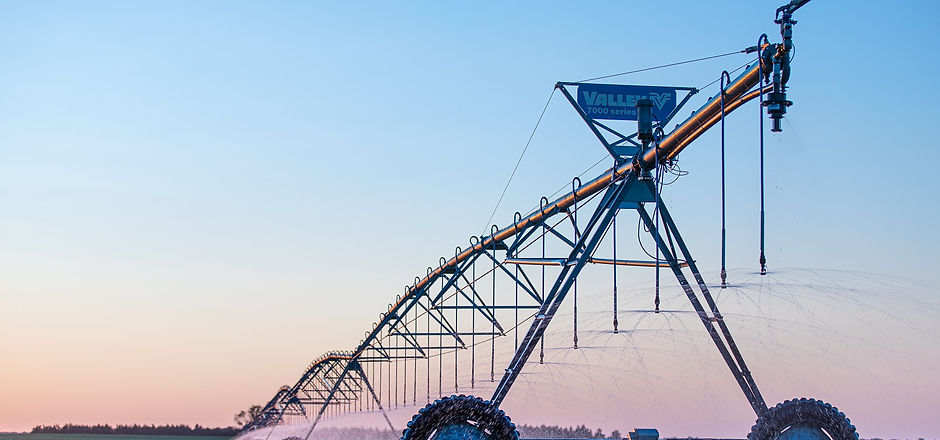

7000 Series Center Pivot

The 7000 series pivot is second only to the industry-leading 8000 series for reliability, durability, and overall performance.
Maximum machine length    2,000'
Crop clearance profile options    Low, standard, high.

5000.tif

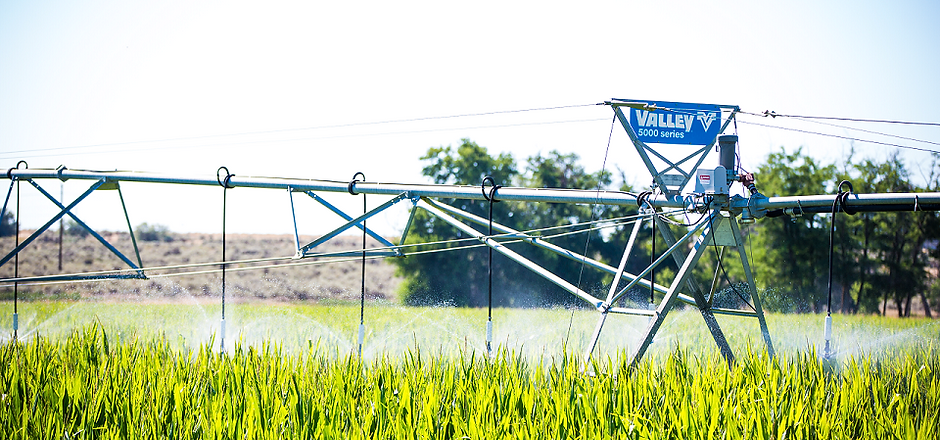

5000 Series Center Pivot

You need to maximize yields and acres on small fields, too, and they shouldn't be treated differently than large fields. That's why we offer the Valley® 5000 series center pivot, a precision irrigation machine that is as durable as the 8000 series, but specifically designed for your smaller fields, up to 60 acres.

Maximum machine length    820'

•    Single-phase power available
•    Hot-dip galvanized
•    4-leg drive unit with braces
•    Welded sprinkler coupler
•    Full wrap-around weldments
•    Forged truss rod heads
•    Uniform pipeline and truss rod crowns maintain even distribution of loads
•    Tight contact of truss rod head in socket for even loading
•    Polyurethane flange gaskets for longer, leak-free life
•    New riser and lower elbow options allow integration of Seametrics Flowmeter or Nelson Valve into riser pipe, and Clemons filter option instead of lower elbow.

Reliable    VS-7000 drive unit — will keep your pivot running throughout the growing season.

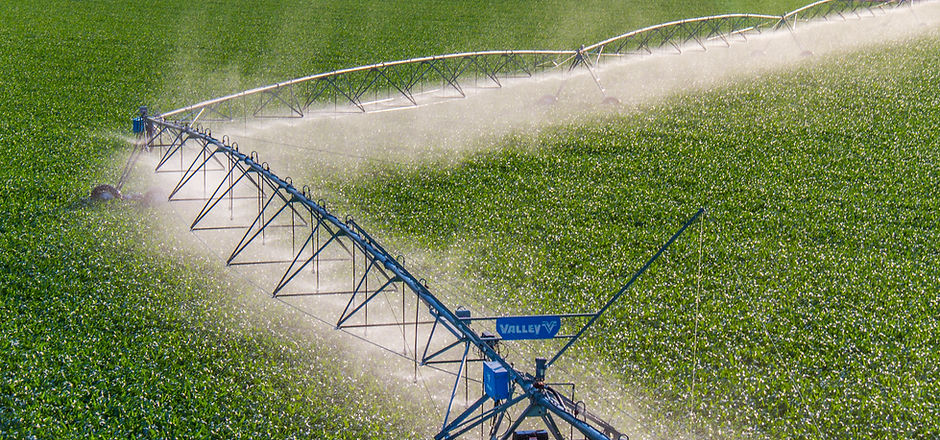

Valley Precision Corner

The Precision Corner earned its name because of the precise way it applies water, chemicals and fertilizers to your fields.

Comes standard with electronic sprinkler sequencing for industry-leading water uniformity
• Electronic controls and diagnostics minimize service calls and allow you to perform an at-a-glance check to ensure proper sprinkler operation
• Chemigate mode allows uniform application of crop-protection chemicals and fertilizers using a fixed-rate injection pump
• Constant-move variable frequency drive motors provide smooth operation and minimal stress on your structure
• Available on the 8000 series in 267’ and 287’ lengths
• Able to operate in leading or trailing mode to best fit your field.

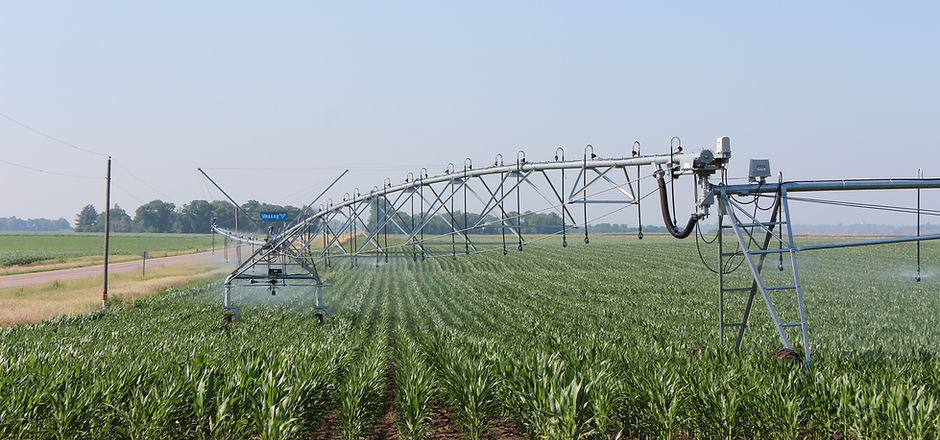

Valley VFlex™ Corner

The Valley® VFlex™ Corner was designed for those of you who want options! This corner machine is completely customizable and was developed using input from growers like you. With more options than any other corner on the market, the VFlex can be built to fit the requirements of your field.

6” 8000 series span means durable structure with less weight on the drive unit for reduced steering loads
• Completely redesigned track-and-roller joint with larger rollers and new wear plates for improved durability
• Wide “T-Bar” mounted cradle for stability in high winds
• New steerable drive unit design with dual tower supports for industry-leading strength and durability
• Available on 7000 and 8000 series

Newest Options:
• Valley Terrain Compensation to reduce oversteering and improve wheel track accuracy on rolling terrain or high ridges
• Valley Corner DualDrive™ for excellent traction and increased floatation in difficult field conditions
• Single Frequency RTK GPS Guidance
• High profile crop clearance

bender 30.JPG

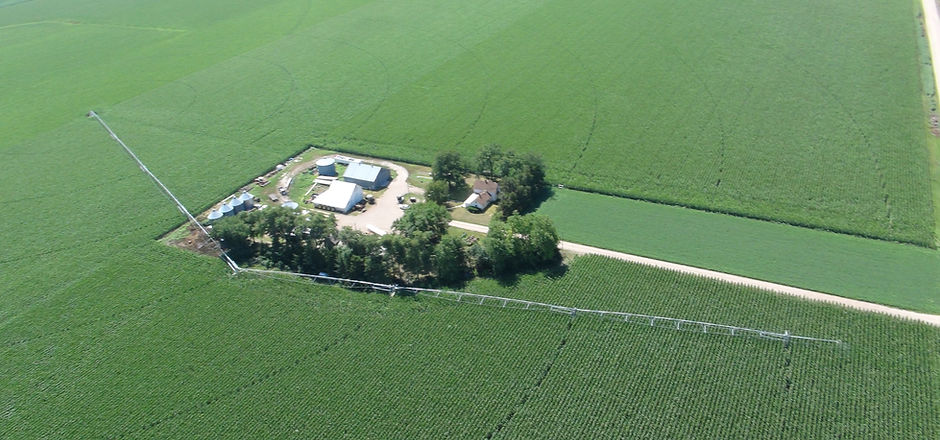

Bender30™ & Bender160™

The Valley Bender is an option added to your center pivot that basically "wraps" it around whatever is in its way: a tree line, a fence, a dairy, or other obstruction. Two barriers are installed by your local Valley dealer on either side of the area that you want to irrigate around. When the pivot reaches the first barrier, the span tower that has the Bender installed, also known as the "bending" tower, keeps irrigating while the rest of the pivot stops. When the "bending" tower reaches the second barrier, it auto-reverses until it becomes flush with the stopped portion of the pivot, which will then resume irrigating in normal fashion.

•    Bends up to 30 degrees in either or both directions
•    Available on 7000 series and 8000 series center pivots
•    Span diameter options — 6", 6 5/8", 8 5/8", 10"
•    Utilizes existing structural components — easy to retrofit without required structural change
•    Available with PolySpan® — for use with corrosive water
•    Bends automatically — no operator input required

•    Bends up to 160 degrees in either or both directions
•    Available on 7000 series and 8000 series center pivots
•    Span diameter options — 6", 6 5/8"
•    Can bend in forward and reverse operation
•    Utilizes custom structural components
•    Integrated end gun and auxiliary controls for bending mode
•    Patent-pending

DropSpan_Corn_July2013_ 136_edited.tif

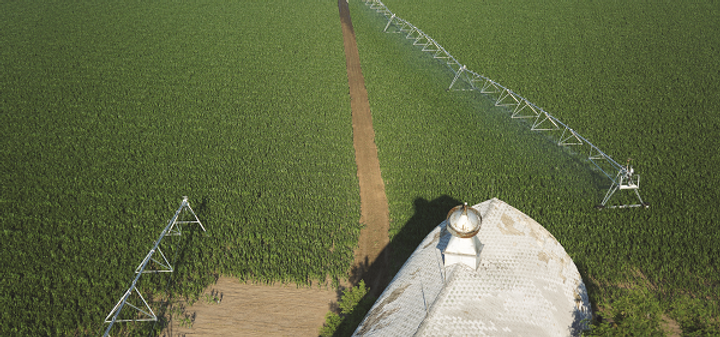

DropSpan™

DropSpan™The Valley DropSpan is an option available for both center pivots and linears that literally "drops" one or more of your machine's spans to continue irrigating around a tree line, a fence, a dairy, or other obstruction. You can easily detach the spans from the rest of the machine in less than 15 minutes without tools, gaining you extra land to irrigate in little time! Two barriers are installed by your local Valley dealer on either side of the area that you want to irrigate around. When the pivot or linear reaches the first barrier, the machine stops so that you can detach the towers with the DropSpan. Once the spans have been "dropped," the rest of the pivot or linear continues to irrigate your field. When the machine reaches the second barrier, it auto-reverses until it becomes flush with the stopped portion of the pivot or linear, which will then resume irrigating in normal fashion after the towers with the DropSpan have been reattached.
•    Spans can be dropped or reattached by one person, without tools, in less than 15 minutes!
•    Multiple DropSpans can be installed on one center pivot or linear
•    Available on 7000 series and 8000 series center pivots
•    Available on linears
•    Simple winch and batten leg system to drop and reattach outer spans
•    Simple electrical connector manages span cable and control logic — no re-wiring needed
•    Optional second end gun

Valley Center Pivots: Our Products
